UV222 Industrial

Disinfecting lamp for industrial use

With its IP66 rating, UV222 Industrial is protected against pressurised water and ready to be installed in all settings requiring intensive and regular cleaning.

Reach out to Sales

For industry use

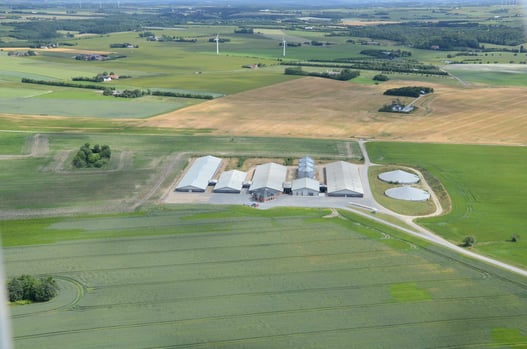

Ultraviolet light is widely used for disinfection in many industries, including medicine and food processing. The application of this technology in livestock production is a more recent development and is increasingly being used, especially on swine farms, as producers look for ways to improve biosecurity in response to frequent outbreaks of devastating diseases, such as African swine fever.

UV222 Industrial has been developed combining the benefits Far-UVC light and a housing adapted to the hardest environments. Thanks to its IP66 rating, UV222 Industrial is dust-tight and protected against pressurised water, which makes it ideal for the disinfection of production areas, barns, and stables for the protection of living animals, offering continuous disinfection with harmless radiation.

Book a meeting

Specifications

Light source	Krypton chloride excimer lamp
Wave length	222 nm
Output (60° beam angle)	115 mW (Typical)
Output (100° beam angle)	70 mW (Typical)
Input voltage	100-240 V AC 50/60 Hz
Mode	Continuous / duty cycle / motion activated
Max power consumption	20 W
Weight	3 kg (6.6 lbs)
Dimensions	300 x 168 x 113 mm (11.8 x 6.6 x 4.4 in)
Power lead (rubber)	3 x 0.75 mm² / 10 m (18 AWG / 32.8 ft)
Operating temperature	-10° to + 50° C (14° to 122° F)

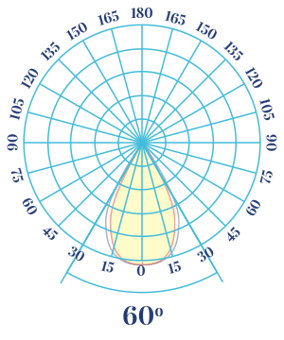

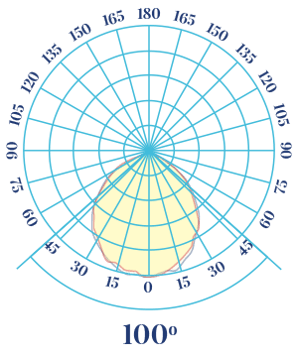

Beam angle

Light measurement results

60° beam angle		100° beam angle
126.92 mW	Output – total optical power flux, 200 nm – 850 nm	75.72 mW
120.79 mW	Far UV-C 200 nm – 230 nm	58.79 mW
6.81 mW	VIS-IR: 400 nm – 850 nm	10.71 mW
0.926 %	Radiated power/lamp power	0.57 %
222 nm	Peak emission wavelength	222 nm
13.8 μW/cm²	UV (222 nm) irradiance at centre at 1 m (3’ 10”)	3.2 μW/cm²
60 °	Beam angle	100 °

Photometrics and exposure time SARS-CoV2/COVID-19

Photometrics and exposure time SARS-CoV2/COVID-19

The spatial and spectral distribution of the light is measured on each lamp using a 2-axis goniometer giving the entire 3D distribution of the Far UV-C light emitted by it.

60° beam angle

Peak emission wavelength: 222 nm
Output power in range (200-230 nm): 115 mW
Dose needed (222 nm, COVID-19) 90% inactivation for
aerosols: 390 μJ/cm²
Dose needed (222 nm, COVID-19) 90% inactivation for
surfaces: 600 μJ/cm²

100° beam angle

Peak emission wavelength: 222 nm
Output power in range (200-230 nm): 70 mW
Dose needed (222 nm, COVID-19) 90% inactivation for
aerosols: 390 μJ/cm²
Dose needed (222 nm, COVID-19) 90% inactivation for
surfaces: 600 μJ/cm²
Wavelength
Dimensions
Color
Colors
- The standard color is brushed aluminium.
- Custom colors are available on request.
Installation
Downloads

Introducing Mercury-Free Far-UVC Technology with KrCl Lamps

UV Medico is proud to introduce an advanced disinfection technology: mercury-free, 222 nm Krypton-Chloride (KrCl) excimer lamps. These innovative lamps offer a safe, sustainable alternative to traditional mercury-based systems, aligning with modern environmental and health standards. Ideal for cleanroom environments, KrCl lamps assure high-level disinfection efficacy without compromising human or ecological safety.

Learn more about our Mercury-free Far-UVC Solutions

Combatting Mold with Advanced Far-UVC Solutions

Mold spores can compromise indoor air quality, triggering a range of health issues from severe allergic reactions to life-threatening infections, particularly in hospital environments. Our latest research reveals that intermittent, low-dose applications of UV222 are surprisingly effective in halting mold growth, ensuring cleaner air while maintaining safe environments for human presence. This innovative approach not only aligns with real-world usage but also opens new frontiers for maintaining health standards in medical facilities and beyond.

Explore our research on mold prevention with Far-UVC light
