UV222 Ambulance

Integrated solution for ambulances and other vehicles

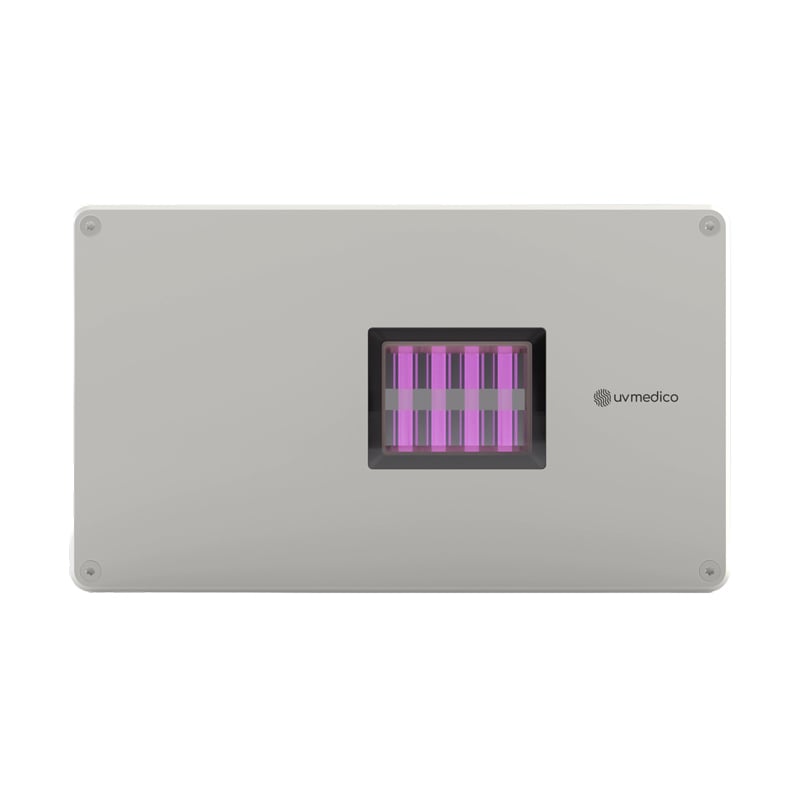

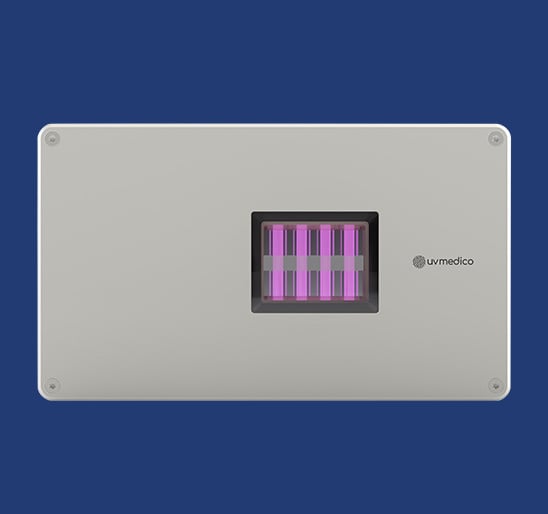

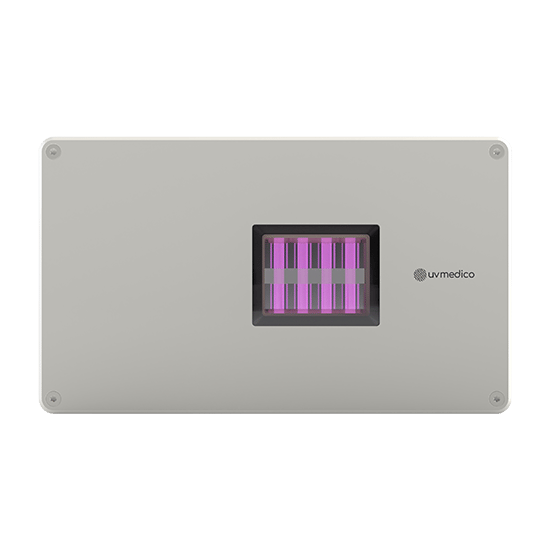

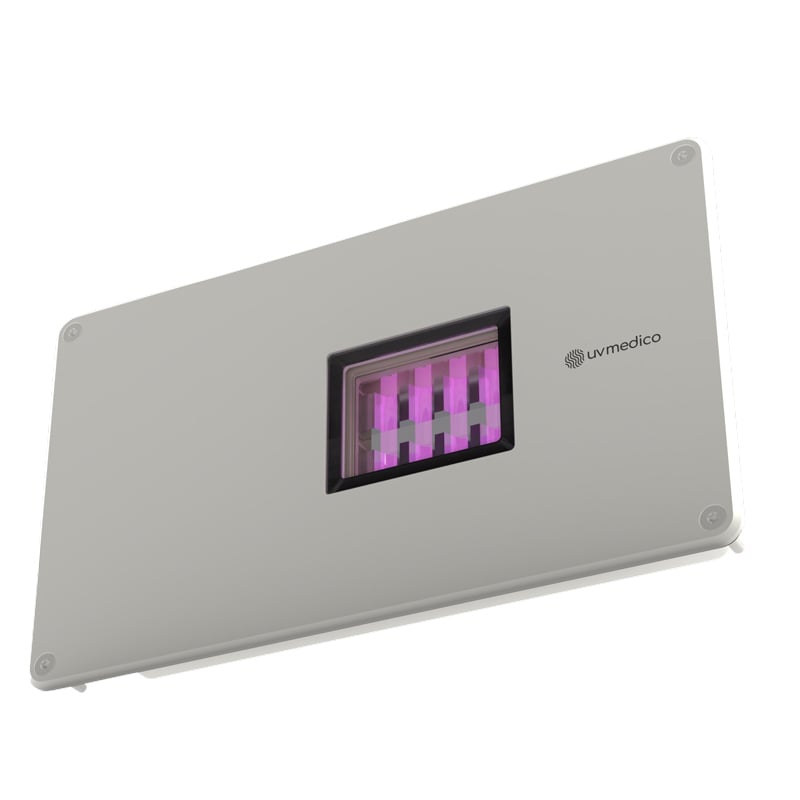

The UV222 Ambulance offers seamless installation in the rear cabin, making it the ultimate Far-UVC solution tailored specifically for ambulances.

Reach out to Sales

UV222-OEM-Module - UV Medico Installation

Easy Integrated Solution

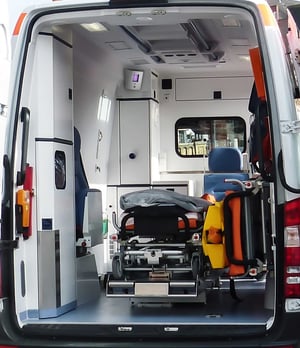

The UV222 Ambulance represents our solution for seamlessly integrating Far-UVC technology into ambulances. Created for direct mounting inside the rear cabin, it can be placed on side panels, top panels, corners, or other suitable locations based on specific requirements.

The compact design of the UV222 Ambulance lamp ensures that it does not interfere with the work of emergency care personnel. These lamps are designed to
continuously inactivate microorganisms, providing protection for both emergency care personnel and patients. This protection is effective both between patients and during ambulance operation, creating a safer environment for everyone involved in emergency care.

We offer customised solutions tailored to the requirements of specific manufacturers.

Book a meeting

Specifications

Light source	Krypton chloride excimer lamp
Wave length	222 nm
Output (60° beam angle)	115 mW (Typical)
Output (100° beam angle)	70 mW (Typical)
Input voltage	9-28 V DC
Mode	Continuous / duty cycle / motion activated
Max power consumption	20 W
Weight	1.0 kg (2.22 lbs)
Dimensions	273 x 160 x 48 mm (10.75 x 6.30 x 1.89 in)
Power lead (PVC)	3 x 0.75 mm² / 3 m (18 AWG / 9.8 ft)
Operating temperature	0° to + 50° C (32° to 122° F)

Beam Angle

Light measurement results

60° beam angle		100° beam angle
126.92 mW	Output – total optical power flux, 200 nm – 850 nm	75.72 mW
120.79 mW	Far UV-C 200 nm – 230 nm	58.79 mW
6.81 mW	VIS-IR: 400 nm – 850 nm	10.71 mW
0.926 %	Radiated power/lamp power	0.57 %
222 nm	Peak emission wavelength	222 nm
13.8 μW/cm²	UV (222 nm) irradiance at centre at 1 m (3’ 10”)	3.2 μW/cm²
60 °	Beam angle	100 °

Photometrics and exposure time SARS-CoV2/COVID-19

Photometrics and exposure time SARS-CoV2/COVID-19

The spatial and spectral distribution of the light is measured on each lamp using a 2-axis goniometer giving the entire 3D distribution of the Far UV-C light emitted by it.

60° beam angle

Peak emission wavelength: 222 nm
Output power in range (200-230 nm): 115 mW
Dose needed (222 nm, COVID-19) 90% inactivation for
aerosols: 390 μJ/cm²
Dose needed (222 nm, COVID-19) 90% inactivation for
surfaces: 600 μJ/cm²

100° beam angle

Peak emission wavelength: 222 nm
Output power in range (200-230 nm): 70 mW
Dose needed (222 nm, COVID-19) 90% inactivation for
aerosols: 390 μJ/cm²
Dose needed (222 nm, COVID-19) 90% inactivation for
surfaces: 600 μJ/cm²
Wavelength
Dimensions
Colors
Colors

The standard color is white (RAL 9010 gloss 30).

Custom color available on request.
Installation
Downloads

Introducing Mercury-Free Far-UVC Technology with KrCl Lamps

UV Medico is proud to introduce an advanced disinfection technology: mercury-free, 222 nm Krypton-Chloride (KrCl) excimer lamps. These innovative lamps offer a safe, sustainable alternative to traditional mercury-based systems, aligning with modern environmental and health standards. Ideal for cleanroom environments, KrCl lamps assure high-level disinfection efficacy without compromising human or ecological safety.

Learn more about our Mercury-free Far-UVC Solutions

UV Medico Partners with Falck to Boost Ambulance Safety Using UV222 Technology

UV Medico has teamed up with Falck, a global leader in emergency services, to install UV222 Ambulance lamps in Falck's ambulances throughout Region Zealand in Denmark. This collaboration aims to revolutionize ambulance disinfection practices, significantly enhancing safety for both patients and healthcare workers.

Discover how UV222 Technology is setting new safety benchmarks in ambulances
