UV222 Step-On
Decontaminate cleanroom shoes
A touchless, chemical-free solution for decontaminating footwear both on the way into the cleanroom and also on the way out, addressing contamination risks not fully mitigated by sticky mats

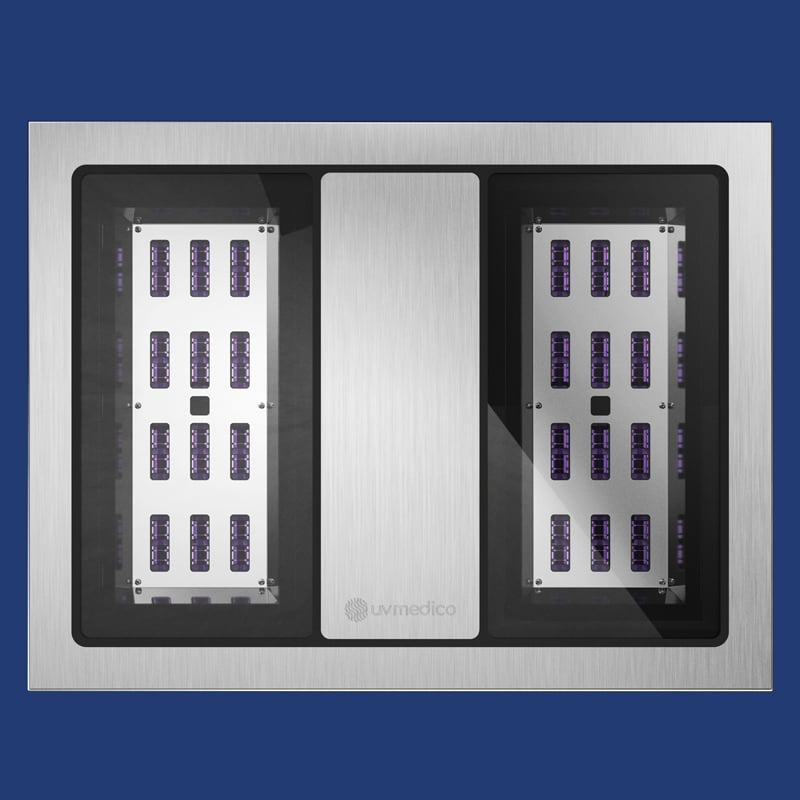

Decontaminate cleanroom shoes with the UV222 Step-On
Cleanroom personnel are trained to minimise their bioburden by following strict protocols and wearing specific protective equipment. This includes wearing specially designed cleanroom shoes, which are easy to clean, secure stability, and are often made of a non-shedding fabric.
Although the shoes are easy to clean, they still represent a risk of contamination, when personnel put on their shoes and move through different cleanroom areas.
The UV222 Step-On is touchless, chemical-free, and a fast and effective way of decontaminating the entire outsole of the shoes, reaching areas inaccessible to sticky mats and wipes.
-
Specifications
Specifications
Light source Krypton chloride excimer lamp Wave length 222 nm Average irradiance (on sole) 1,000 uW/cm² † Dose in 15 sec. (on sole) 15 mJ/cm² † Input voltage 100-240 V AC, 50/60 Hz Mode With external on/off or when steppd on† Max power consumption 120 W Dimensions 640 x 490 x 87.5 mm (25.2 x 19.3 x 3.44 in) † Operating temperature 0° to +50° C (32° to 122° F) -

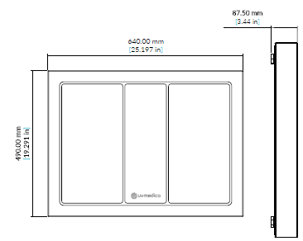

Dimensions
*Dimensions
The dimensions are based on a standard UV222 Step-On, and it can be customised to specific needs.
-
Installation and maintenance
Installation and maintenance
The UV222 Step-On is designed for straightforward installation and maintenance within the cleanroom areas, specifically integrated into the floor, for a seamless and safe solution. The surface is accessible for cleaning and can be ordered in one of two types of medical-grade stainless steel (304L or 316L), renowned for their strength, durability, and corrosion resistance.
-
Downloads
Do you want the Product Datasheet or the Technical & Installation manual?
Introducing Mercury-Free Far-UVC Technology with KrCl Lamps
UV Medico is proud to introduce an advanced disinfection technology: mercury-free, 222 nm Krypton-Chloride (KrCl) excimer lamps. These innovative lamps offer a safe, sustainable alternative to traditional mercury-based systems, aligning with modern environmental and health standards. Ideal for cleanroom environments, KrCl lamps assure high-level disinfection efficacy without compromising human or ecological safety.
Get in touch with UV Medico
Should you be keen to explore the capabilities of the UV222 Step-On, just fill in your email. Our team will connect with you promptly, offering insights and support tailored to your needs.
Comply with Annex 1 using the Step-On
The new Annex 1, taking effect on August 25, 2023, mandates that manufacturers of sterile products must implement measures to minimize the risk of microbial contamination.
The Step-On ensures adherence to Annex 1 by efficiently deactivating microorganisms on footwear as individuals enter and exit the cleanroom.
