Minimize the risk of surgical site infections

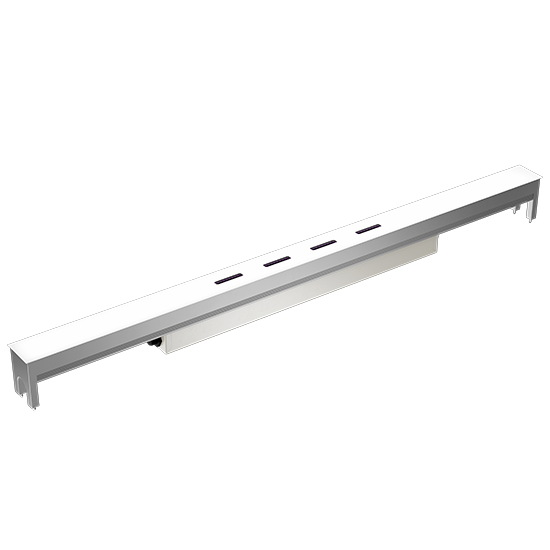

UV222 Linear
Designed for operating theatres, this lamp upholds cleanliness standards crucial for sterile environments by reducing microbial load, thereby lowering the risk of surgical site infections and improving patient safety and outcomes.
Linear light for operating theatres
The UV222 Linear seamlessly integrates visible light and continuous air and surface decontamination. Designed for installation in operating theatres and various settings requiring the dual effect of visible and Far-UVC light at 222 nm, such as patient rooms, restrooms, medical staff rooms, and waiting areas.
In operating theatres, the UV222 Linear offers flexibility, suitable for being installed as a stand-alone unit or integrated with a Laminar Air Flow (LAF) system. This integration ensures effective, chemical-free decontamination, serving as a powerful asset in maintaining the cleanliness and safety standards of modern surgical facilities, all without posing any risk to patients or medical staff.
True and flicker-free colours
The UV222 Linear combines decontamination and strong lighting, providing clear, true colors with a 90 CRI and 4,000 K. Its flicker-free design and color variation help reduce fatigue and boost productivity for surgeons and nurses.
Light measurement results
| 60° beam angle | 100° beam angle | |
|
126.92 mW |
Output – total optical power flux, 200 nm – 850 nm |
75.72 mW |
|
120.79 mW |
Far UV-C 200 nm – 230 nm |
58.79 mW |
|
6.81 mW |
VIS-IR: 400 nm – 850 nm |
10.71 mW |
|
0.926 % |
Radiated power/lamp power |
0.57 % |
|
222 nm |
Peak emission wavelength |
222 nm |
|
13.8 μW/cm2 |
UV (222 nm) irradiance at centre at 1 m (3’ 10”) |
3.2 μW/cm2 |
|
60° |
Beam angle |
100° |
