UV222 Material Airlock
The UV222 Material Airlock offers a microbial decontamination solution for larger equipment, ensuring a rapid process that prepares the equipment for transfer between cleanroom zones without causing any material degradation or particle transfer.
Ensure equipment decontamination during transfers
The UV222 Material Airlock forms a protective barrier between cleanroom zones, ensuring seamless equipment decontamination during transfers and effectively preventing particle transfer, safeguarding the cleanliness standards of the cleanroom.
When transferring equipment to higher-grade cleanroom areas, decontamination is essential, encompassing both smaller and bigger items including substantial equipment such as vessels. Cleanroom requirements specify the number of particles and microbial load, creating a restrictive work environment, where every risk of contamination should be minimised.
-
Specifications
Specifications
Light source Krypton chloride excimer lamp Wave length 222 nm Average irradiance (at centre) 250 µW/cm² † Dose in 15 min. (at centre) 225 mJ/cm² † Input voltage 85-305V AC 50/60 Hz Mode 15 min. duty cycle or until stopped by user † Max power consumption 2.1 kW Dimensions – inside L150 x W120 x H80 cm (5.9 x 3.9 x 2.8 ft) † Dimensions – outside L220 x W150 x H110 cm (7.2 x 5.9 x 3.6 ft) † Operating temperature 0° to +50° C (32° to 122° F) † Values based on a standard UV222 Material Airlock with 127 Far UV-C light sources.
The UV222 Material Airlock can be customised upon request. -

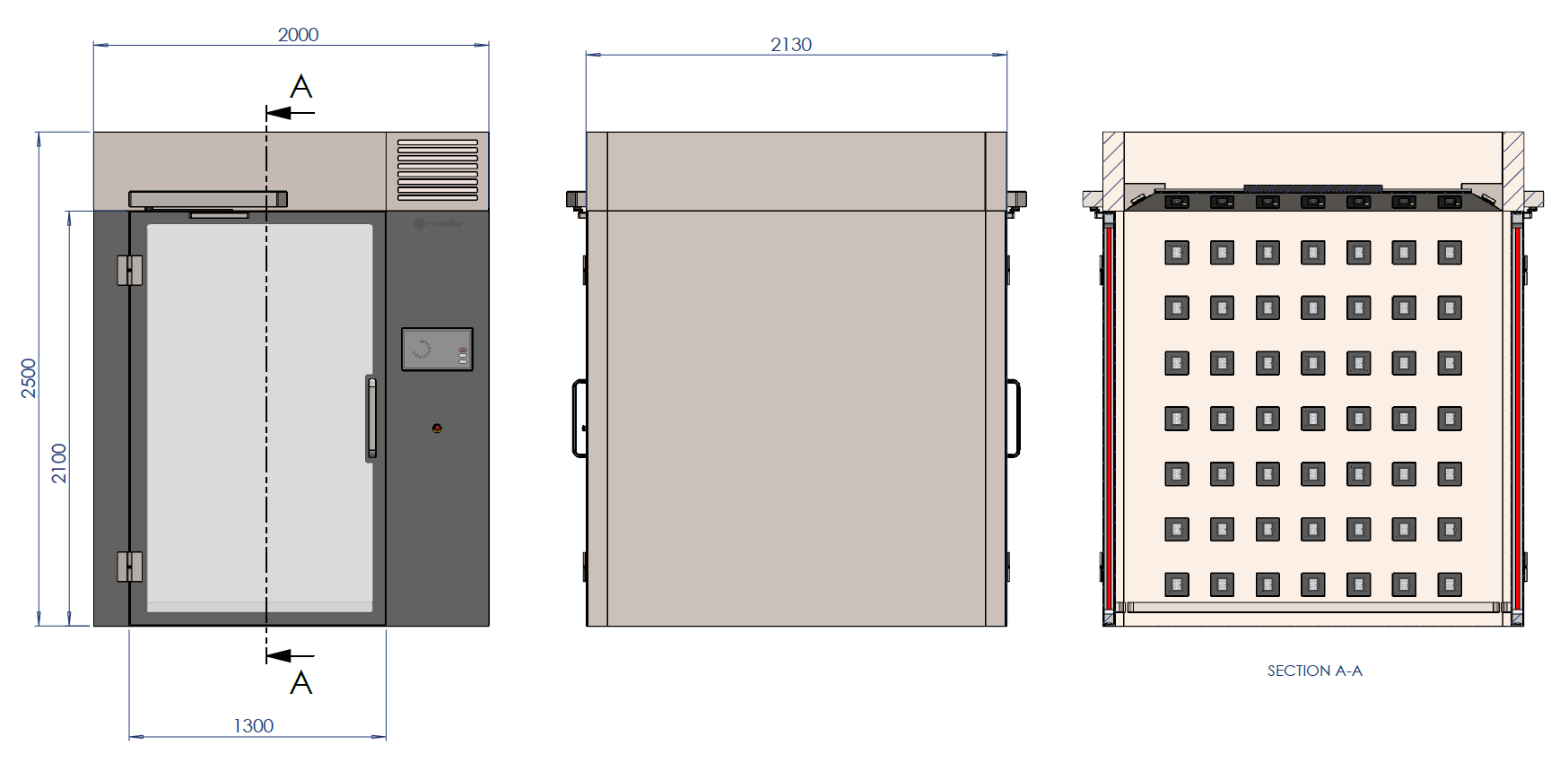

Dimensions
*Dimensions
The dimensions are based on a standard UV222 Material Airlock, and the product can be customised to fit specific needs.
-
Installation and Maintenance
Installation and Maintenance
The UV222 Material Airlock is designed for easy installation and maintenance between cleanroom grades. The surface is accessible for cleaning and can be ordered in one of two types of medical-grade stainless steel (304L or 316L), renowned for their strength, durability, and corrosion resistance.
Introducing Mercury-Free Far-UVC Technology with KrCl Lamps
UV Medico is proud to introduce an advanced disinfection technology: mercury-free, 222 nm Krypton-Chloride (KrCl) excimer lamps. These innovative lamps offer a safe, sustainable alternative to traditional mercury-based systems, aligning with modern environmental and health standards. Ideal for cleanroom environments, KrCl lamps assure high-level disinfection efficacy without compromising human or ecological safety.
Get in touch with UV Medico
Should you be keen to explore the capabilities of the UV222 Material Airlock, just fill in your email. Our team will connect with you promptly, offering insights and support tailored to your needs.
