Vertex 222

Cutting-Edge decontamination with our Corner Fixture Lamp

The Vertex 222 is a state-of-the-art sanitation solution for optimal room coverage. With its 222 nm Krypton Chloride Excimer Lamp, this versatile device can be installed in corners, ensuring comprehensive decontamination.

Reach out to sales

Complete Room Coverage Decontamination with Vertex 222

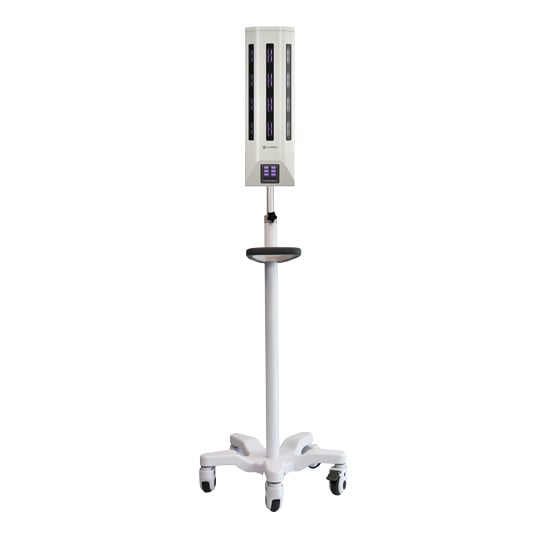

The Vertex 222 model is designed to be either fixed or portable, making it easy to position in key locations within the desired area. The lamps utilize strategically positioned light sources to ensure uniform distribution of decontaminating Far-UVC ligh t. Used independently in corner locations or in combination with other UV222 solutions from UV Medico, the Vertex 222 provides a comprehensive approach to creating safer and healthier environments.

Whether you choose a fixed or portable model, Vertex 222 offers programmable modes and robust construction, ideal for various environments seeking a safer, cleaner space.

Key Features:
- Optimal Wavelength: Utilizes 222 nm light for effective sanitization.
- Flexible Installation: Designed for corners, maximizing room coverage.
- Customizable Operation: Features continuous, duty cycle, and motion sensor modes.
- Durable and Efficient: IP65 rated with minimal power consumption.

Book a meeting with us

Specifications

Light source	Krypton chloride excimer lamp
Wavelength	222 nm
Output	460 mW (Typical)
Dose in 15 sec. (on sole)	15 mJ/cm² †
Input voltage	90-264 V AC
Mode (programmable)	Continuous / duty cycle/motion sensor
Max power consumption	120 W
Dimensions	167 x 136.5 x 530 mm (6.57 x 5.37 x 20.86 in)
Operating temperature	0° to + 40° C (32° to 104° F)
Ambient humidity	5-90% RH Non condensing
Materials	Aluminum, quartz glass
Power Lead (PVC)	3 x 0.75 mm² (18 AWG)
Weight	4.5 kg (9.92 lbs)

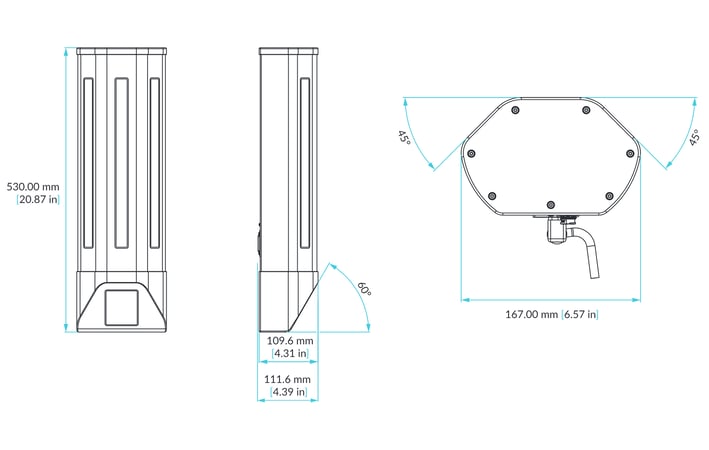

Dimensions
Vertex 222 coverage simulation

Learn how Vertex 222 is enhancing hospitals' infection control

We are pleased to announce the first deployment of Vertex 222 lamps to the prestigious Military Medical City Hospital in Doha, Qatar.

MMC Hospital Delivery

Mohammad Shatnawi MD at UV Medico Gulf "Seeing the Vertex 222 lamps come to life in the Military Medical City Hospital in Doha not only reinforces our mission to deliver groundbreaking technologies but also fills us with immense joy and pride. It's more than just a business achievement; it's about making a tangible difference in the lives of people"

Safe And Effective Microbial Control

Far-UVC technology has emerged as a highly effective solution for microbial control. Operating at 222 nm, Far-UVC light showcases potent germicidal properties, effectively inactivating viruses, bacteria, and fungi. What sets UV222 apart is its exceptional safety for humans; the light does not penetrate human skin or eyes.
