Data sheet for UV222 Pendant

Design and efficient disinfection come hand-in-hand with this Far UV-C lamp ideal for spaces with high ceilings.

Elegant design and adjustable height

The hospitality sector presents a special challenge in the prevention of the spread of viruses and bacteria, due to frequent gathering of customers in closed spaces.It only requires a diseased individual to release into the atmosphere the potentially infectious pathogen, that will then be carried all over the room.

Transmission of bacteria can take place also via surfaces. Tables, chairs, and menus are among the most typical places to find bacteria agglomerations.UV222 Pendant targets the disinfection of air and surfaces in the hospitality industry to protect customers and employees. Deeper and safer disinfection made possible, with an elegant design easily integrated into any space.

UV222 Pendant

Specifications

Light source Krypton chloride excimer lamp
Wave length 222 nm
Output (60° beam angle) 115 mW (Typical)
Output (100° beam angle) 70 mW (Typical)
Input voltage 85-305V AC 50/60 Hz
Mode Continuous / duty cycle / motion activated
Max power consumption 17 W
Weight 2.3 kg (4.48 lbs)
Dimensions Ø 182 mm x 172 mm (7.2 in x 6.8 in)
Power lead (nylon) 3 x 0.75 mm (18 AWG)
Operating temperature 0° to + 50° C (32° to 122° F)

Beam angle

UV222 is available on both 60° and 100°, but every lamp is measured after production and sent with its unique specifications report.

Beam Angle 100 degrees

Light measurement results

60° beam angle

100° beam angle

126.92 mW

Output – total optical power flux, 200 nm – 850 nm

75.72 mW

120.79 mW

Far UV-C 200 nm – 230 nm

58.79 mW

6.81 mW

VIS-IR: 400 nm – 850 nm

10.71 mW

0.926 %

Radiated power/lamp power

0.57 %

222 nm

Peak emission wavelength

222 nm

13.8 μW/cm2

UV (222 nm) irradiance at centre at 1 m (3’ 10”)

3.2 μW/cm2

60 °

Beam angle

100 °

Photometrics and exposure time SARS-CoV2/COVID-19

The spatial and spectral distribution of the light is measured on each lamp using a 2-axis goniometer giving the entire 3D distribution of the Far UV-C light emitted by it.

60° beam angle

Peak emission wavelength: 222 nm
Output power in range (200-230 nm): 115 mW
Dose needed (222 nm, COVID-19) 90% inactivation for
aerosols: 390 μJ/cm2
Dose needed (222 nm, COVID-19) 90% inactivation for
surfaces: 600 μJ/cm2

100° beam angle

Peak emission wavelength: 222 nm
Output power in range (200-230 nm): 70 mW
Dose needed (222 nm, COVID-19) 90% inactivation for
aerosols: 390 μJ/cm2
Dose needed (222 nm, COVID-19) 90% inactivation for
surfaces: 600 μJ/cm2

Far-UV-C-wavelength

Wavelength

UV222 Far UV-C excimer lamp with an optical band-pass filter

A typical krypton chloride 222 nm Far UV-C excimer lamp without an optical band-pass filter

WARNING!
Unfiltered Far UV-C can cause cancer and may increase the risk of cataracts.

UV222 Pendant - dimensions

Dimensions

UV222 Pendant includes a braided nylon cable, cut following the needs of your installation.

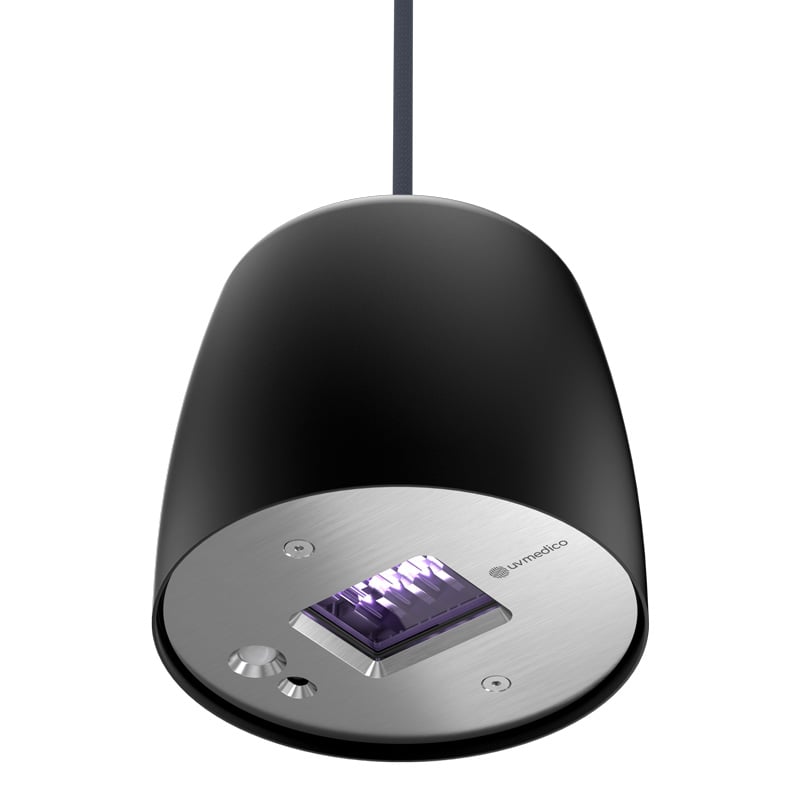

UV222 Pendant with black shade

Colours

  • The standard colour is white (RAL 9010 mat).
  • Custom colours are available on request.

Installation

The installation plate allows for direct set up on surfaces like walls and ceilings, as well as attachment to wall brackets with tilt and swivel functions, clamps, etc.

Downloads

Ordering information

UV222 Pendant 60°, RAL 9010 80202010
UV222 Pendant 60°, custom colour 80202011
UV222 Pendant 100°, RAL 9010 80202020
UV222 Pendant 100°, custom colour 80202021
