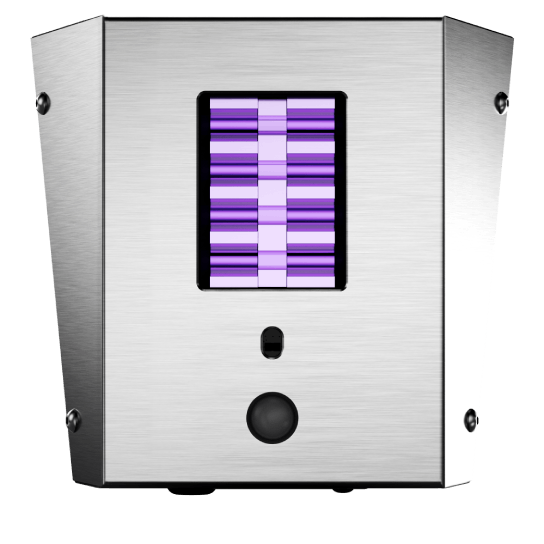

UV222 Vehicle
For ambulances and other vehicles
Compact and easy to clean, UV222 Vehicle is ideal to be installed in lifts, public transport, and medically equipped vehicles.
Ambulances and lifts
Small indoor spaces, such as vehicles and lifts, provide the right conditions to boost the spread of pathogens. To meet the increasing demands for higher hygiene in the transport sector, we have created UV222 Vehicle, to reduce the risk of infection in these areas.
UV222 Vehicle can be easily installed in ambulances, where fast and proper disinfection is essential for the transport of patients. The lamp will provide a continuous extra layer of disinfection without extending the cleaning process.
Lifts have also been appointed during the pandemic as sensitive areas for transmission of pathogens, and many are installed in buildings without proper ventilation systems. UV222 Vehicle can provide a disinfection as efficient as 35 air changes per hour.
-
Specifications
Specifications
Light source Krypton chloride excimer lamp Wave length 222 nm Output (60° beam angle) 115 mW (Typical) Output (100° beam angle) 70 mW (Typical) Input voltage 9-28 V DC Mode Continuous / duty cycle / motion activated Max power consumption 20 W Weight 1.3 kg (2.86 lbs) Dimensions 161 x 170 x 136 mm (6.30 x 6.70 x 5.4 in) Power lead (PVC) 3 x 0.75 mm² / 3 m (18 AWG / 9.8 ft) Operating temperature 0° to + 50° C (32° to 122° F) -
Beam Angle
UV222 is available on both 60° and 100°, but every lamp is measured after production and sent with its unique specifications report.
-
Light measurement results
Light measurement results
60° beam angle
100° beam angle
126.92 mW
Output – total optical power flux, 200 nm – 850 nm
75.72 mW
120.79 mW
Far UV-C 200 nm – 230 nm
58.79 mW
6.81 mW
VIS-IR: 400 nm – 850 nm 10.71 mW
0.926 %
Radiated power/lamp power
0.57 %
222 nm
Peak emission wavelength
222 nm
13.8 μW/cm2
UV (222 nm) irradiance at centre at 1 m (3’ 10”)
3.2 μW/cm2
60 °
Beam angle
100 °
-
Photometrics and exposure time SARS-CoV2/COVID-19
Photometrics and exposure time SARS-CoV2/COVID-19
The spatial and spectral distribution of the light is measured on each lamp using a 2-axis goniometer giving the entire 3D distribution of the Far UV-C light emitted by it.
60° beam angle
Peak emission wavelength: 222 nm
Output power in range (200-230 nm): 115 mW
Dose needed (222 nm, COVID-19) 90% inactivation for
aerosols: 390 μJ/cm2
Dose needed (222 nm, COVID-19) 90% inactivation for
surfaces: 600 μJ/cm2100° beam angle
Peak emission wavelength: 222 nm
Output power in range (200-230 nm): 70 mW
Dose needed (222 nm, COVID-19) 90% inactivation for
aerosols: 390 μJ/cm2
Dose needed (222 nm, COVID-19) 90% inactivation for
surfaces: 600 μJ/cm2 -
Wavelength
-
Dimensions
Dimensions
UV222 Industrial includes an installation bracket for fixing the lamp on any surface.
-
Colors
Colors
- The standard colur is brushed aluminium.
- Custom colour available on request.
-
Installation
Installation
The installation plate allows for direct set up on surfaces like walls and ceilings, as well as attachment to wall brackets with tilt and swivel functions, clamps, etc.
Safe And Effective Microbial Control
Far-UVC technology has emerged as a highly effective solution for microbial control. Operating at 222 nm, Far-UVC light showcases potent germicidal properties, effectively inactivating viruses, bacteria, and fungi. What sets UV222 apart is its exceptional safety for humans; the light does not penetrate human skin or eyes.
Downloads
Do you want the Product Datasheet or the Technical & Installation manual?
